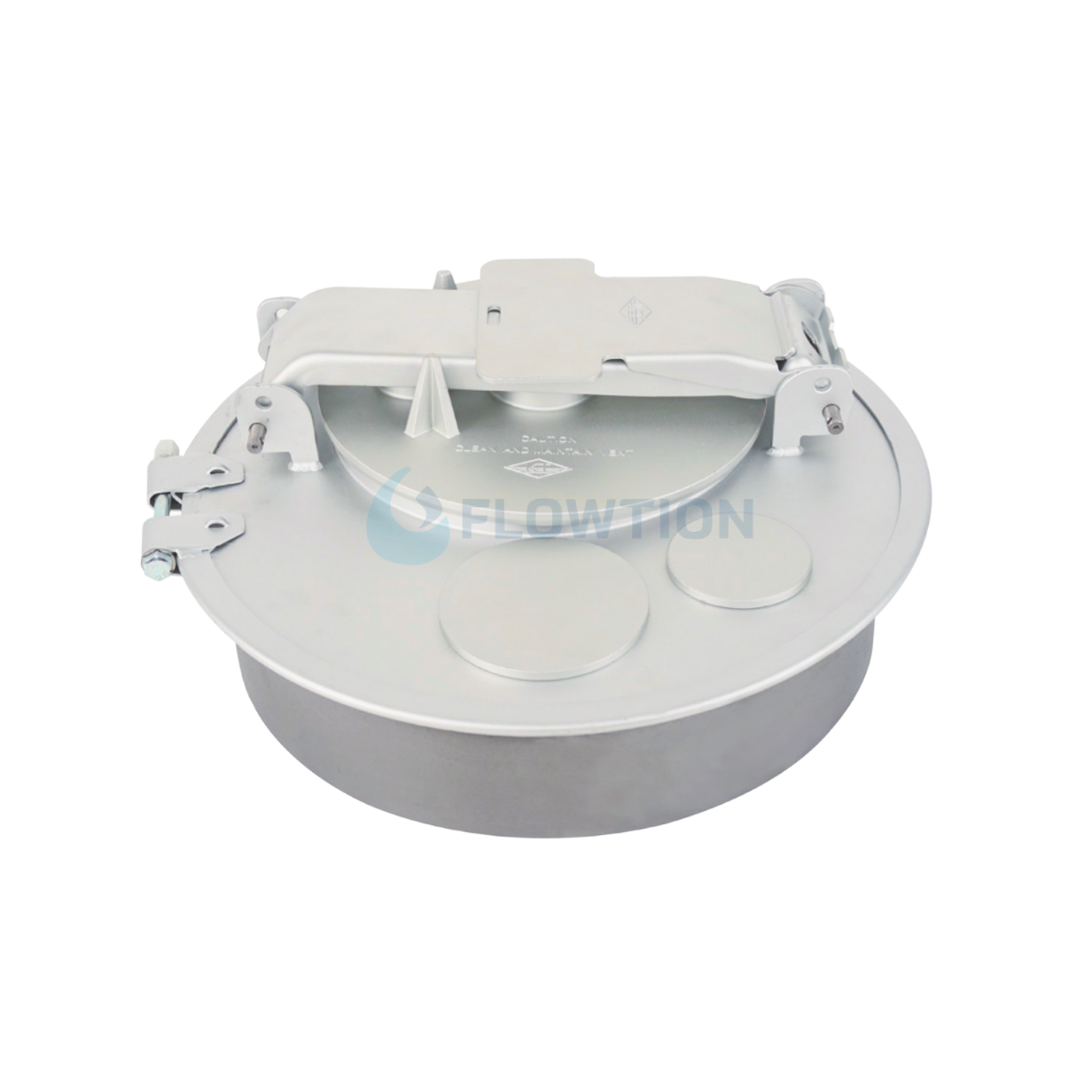

16 inch Manhole Cover Clamp
Clamped manhole cover can be open up to 135 ° , two auxiliary holes can be used for installing vapor recovery valve and anti-over flow sensor. The ring can be customized as requirement. It meets to GB18564.1-2019. Main body is carbon steel.
Applications:
a. When the tank's interior pressure is 6 to 12 KPa higher than external, the breathing valve should be open.
b. When the tank's interior pressure is 2 to 4 KPa lower than external, the breathing valve should be open.
Remark: The sealing material should be replaced within 6 months, special working condition need to be customized.
Features & Benefits

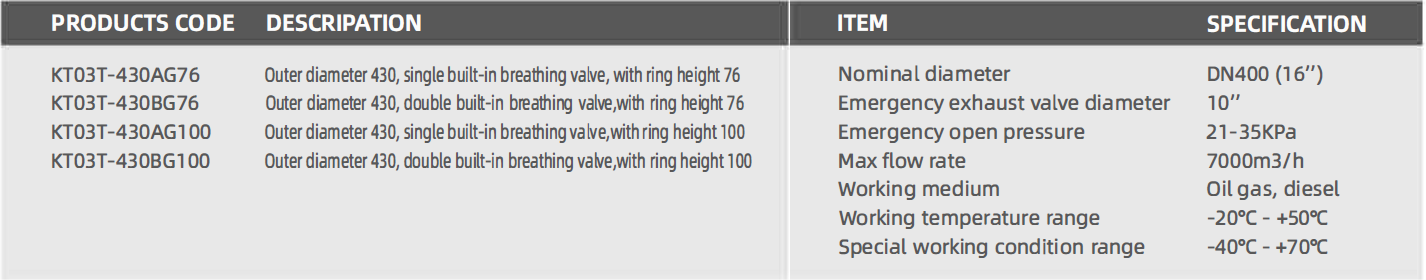

Model Numbers
- KTO3T-430
Repair Parts
Downloads

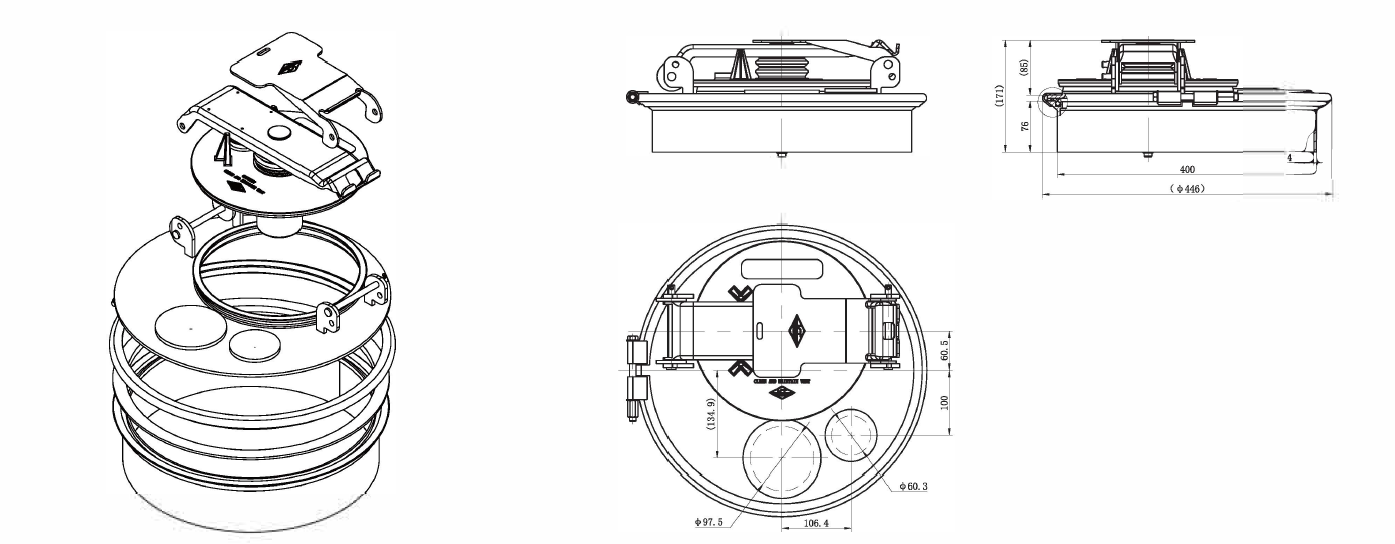

- Technical Drawing
