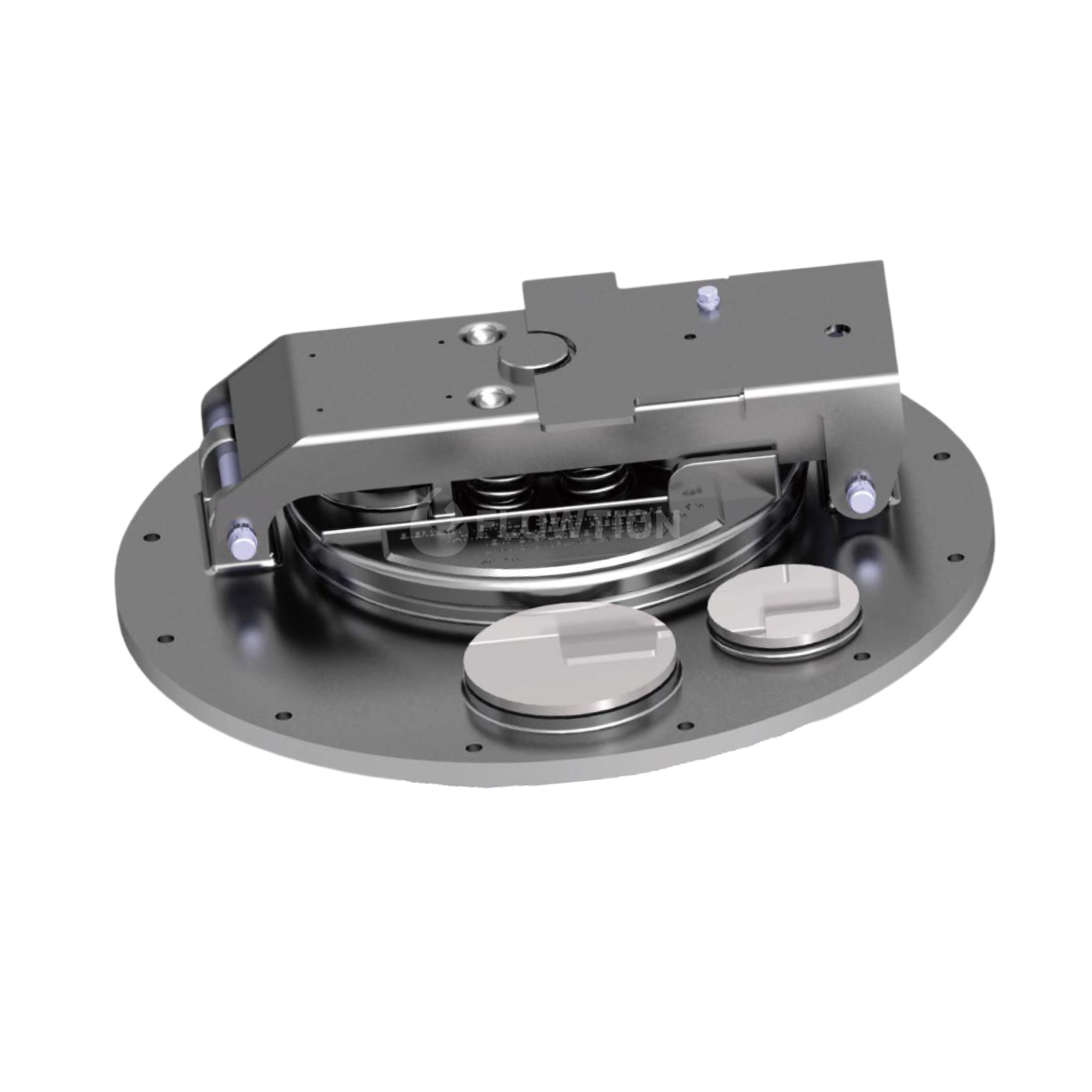

16 inch Manhole Cover Bolted
The large and small cover bodies are made of cast aluminum alloy with a hard anodized surface treatment. The small cover has a diameter of φ250 and is equipped with an emergency pressure relief function. It can be fitted with a single or dual built-in breather valve. The large cover has 2 spare holes, which can be used to install an anti-overflow probe, an oil measurement port, or an external breather valve, and is installed on the top of the tank truck.
Applications:
a. When the tank's interior pressure is 6 to 12 KPa higher than external, the breathing valve should be open.
b. When the tank's interior pressure is 2 to 4 KPa lower than external, the breathing valve should be open.
Remark: The sealing material should be replaced within 6 months, special working condition need to be customized.
Features & Benefits

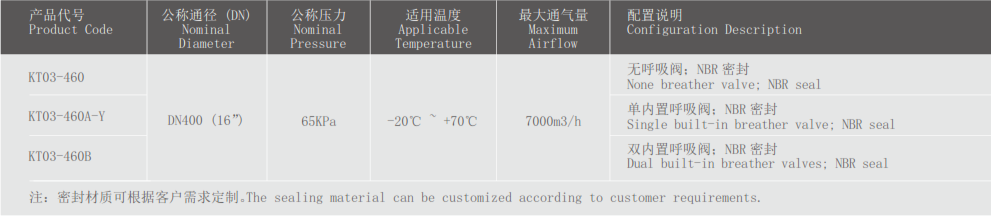

| Product Code | Nominal Diameter | Nominal Pressure | Applicable Temperature | Maximum Airflow | Configuration Description |
| KT03-460 | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | None breather valve; NBR seal |
| KT03-460A-Y | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | Single built-in breather valve; NBR seal |
| KT03-460B | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | Dual built-in breather valves; NBR seal |
Model Numbers
- KT03-460A
Repair Parts
Downloads

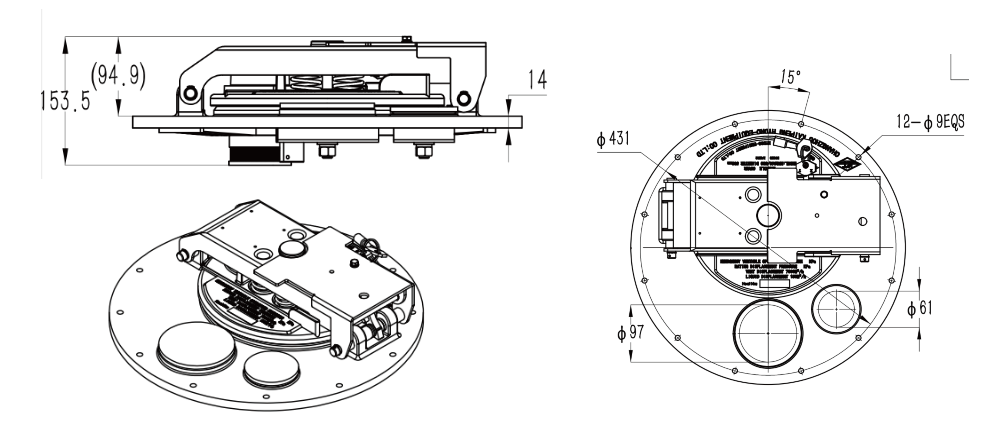

- Technical Drawing Download
Videos
Features & Benefits
| Product Code | Nominal Diameter | Nominal Pressure | Applicable Temperature | Maximum Airflow | Configuration Description |
| KT03-460 | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | None breather valve; NBR seal |
| KT03-460A-Y | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | Single built-in breather valve; NBR seal |
| KT03-460B | DN400 (16”) | 65KPa | -20℃ ~ +70℃ | 7000m3/h | Dual built-in breather valves; NBR seal |
Model Numbers
- KT03-460A
Downloads
- Technical Drawing Download
